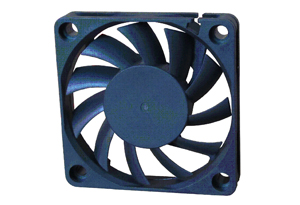

DC Axial-Flow Fan
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Dimensions Drawing（外观图） | ★Characteristic Curves（特性曲线） |
 |
 |
| ★Specifications（规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD127015HSL | 12 | 10.8～13.2 | 0.30 | 3.60 | 4000 | 34.18 | 4.03 | 31.66 | 48 | |
| YD127015MSL | Sleeve | 0.25 | 3.00 | 3600 | 29.40 | 3.53 | 31.08 | 48 | ||
| YD127015LSL | 0.20 | 2.40 | 3000 | 24.42 | 2.62 | 27.20 | 48 | |||
| YD127015HBL | 0.30 | 3.60 | 4000 | 34.18 | 4.03 | 31.66 | 48 | |||
| YD127015MBL | Ball | 0.25 | 3.00 | 3600 | 29.40 | 3.53 | 31.08 | 48 | ||
| YD127015LBL | 0.20 | 2.40 | 3000 | 24.42 | 2.62 | 27.20 | 48 | |||
| YD247015HSL | 24 | 21.6～26.4 | 0.14 | 3.36 | 4000 | 34.18 | 4.03 | 31.66 | 48 | |
| YD247015MSL | Sleeve | 0.11 | 2.64 | 3600 | 29.40 | 3.53 | 31.08 | 48 | ||
| YD247015LSL | 0.08 | 1.92 | 3000 | 24.42 | 2.62 | 27.20 | 48 | |||
| YD247015HBL | 0.14 | 3.36 | 4000 | 34.18 | 4.03 | 31.66 | 48 | |||
| YD247015MBL | Ball | 0..11 | 2.64 | 3600 | 29.40 | 3.53 | 31.08 | 48 | ||
| YD247015LBL | 0.08 | 1.92 | 3000 | 24.42 | 2.62 | 27.20 | 48 | |||
