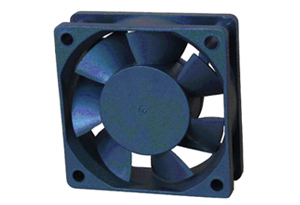

DC Axial-Flow Fan
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Dimensions Drawing（外观图） | ★Characteristic Curves（特性曲线） |
 |
 |
| ★Specifications（规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD126020HSL | 12 | 10.8～13.2 | 0.15 | 1.80 | 4000 | 20.28 | 3.65 | 29.04 | 49 | |
| YD126020MSL | Sleeve | 0.10 | 1.20 | 3300 | 16.50 | 2.50 | 23.85 | 49 | ||
| YD126020LSL | 0.07 | 0.84 | 2500 | 12.31 | 1.45 | 21.35 | 49 | |||
| YD126020HBL | 0.15 | 1.80 | 4000 | 20.28 | 3.65 | 29.04 | 49 | |||
| YD126020MBL | Ball | 0.10 | 1.20 | 3300 | 16.50 | 2.50 | 23.85 | 49 | ||
| YD126020LBL | 0.07 | 0.84 | 2500 | 12.31 | 1.45 | 21.35 | 49 | |||
| YD246020HSL | 24 | 21.6～26.4 | 0.12 | 2.88 | 4000 | 20.28 | 3.65 | 29.04 | 49 | |
| YD246020MSL | Sleeve | 0.08 | 1.92 | 3300 | 16.50 | 2.50 | 23.85 | 49 | ||
| YD246020LSL | 0.05 | 1.20 | 2500 | 12.31 | 1.45 | 21.35 | 49 | |||
| YD246020HBL | 0.15 | 2.88 | 4000 | 20.28 | 3.65 | 29.04 | 49 | |||
| YD246020MBL | Ball | 0.13 | 1.92 | 3300 | 16.50 | 2.50 | 23.85 | 49 | ||
| YD246020LBL | 0.11 | 1.20 | 2500 | 12.31 | 1.45 | 21.35 | 49 | |||
