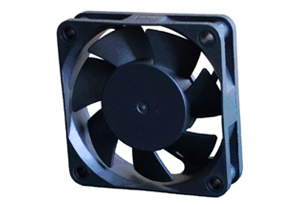

60*60*15mm 直流风扇

606015
点击下载点击下载

DC Axial-Flow Fan

★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)

★Dimensions Drawing（外观图） ★Characteristic Curves（特性曲线）
6015.1 6015.2
★Specifications（规格）
Model Bearing Rated Operation Current Input Speed Air Flow Static Niose Weight
System Voltage Voltage power Pressure Level
(V) (V) (A) (W) (RPM) (CFM) (mm-H2O) (dB-A) (g)
(型号) (培林) (电压) (电压范围) (电流) (功率) (转速) (风量) (静压) (噪音) (重量)
YD056015HSL 5 4.5～5.5 0.26 1.30 4000 19.83 2.35 34.63 33
YD056015MSL Sleeve 0.20 1.00 3500 17.58 1.85 30.69 33
YD056015LSL 0.14 0.70 3000 14.67 1.27 28.54 33
YD056015HBL 0.26 1.30 4000 19.83 2.35 34.63 33
YD056015MBL Ball 0.20 1.00 3500 17.58 1.85 30.69 33
YD056015LBL 0.14 0.70 3000 14.67 1.27 28.54 33
YD126015HSL 12 10.8～13.2 0.15 1.80 4000 19.83 2.35 34.63 33
YD126015MSL Sleeve 0.13 1.56 3500 17.58 1.85 30.69 33
YD126015LSL 0.11 1.32 3000 14.67 1.27 28.54 33
YD126015HBL 0.15 1.80 4000 19.83 2.35 34.63 33
YD126015MBL Ball 0.13 1.56 3500 17.58 1.85 30.69 33
YD126015LBL 0.11 1.32 3000 14.67 1.27 28.54 33
