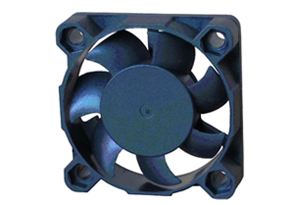

DC Axial-Flow Fan
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Dimensions Drawing（外观图） | ★Characteristic Curves（特性曲线） |
 |
 |
| ★Specifications（规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD054510HSL | 5 | 4.5～5.5 | 0.20 | 1.00 | 6000 | 7.22 | 3.38 | 31.86 | 15 | |
| YD054510MSL | Sleeve | 0.16 | 0.80 | 5000 | 5.83 | 2.42 | 27.29 | 15 | ||
| YD054510LSL | 0.12 | 0.60 | 4000 | 4.50 | 1.57 | 22.06 | 15 | |||
| YD054510HBL | 0.20 | 1.00 | 6000 | 7.22 | 3.38 | 31.86 | 15 | |||
| YD054510MBL | Ball | 0.16 | 0.80 | 5000 | 5.83 | 2.42 | 27.29 | 15 | ||
| YD054510LBL | 0.12 | 0.60 | 4000 | 4.50 | 1.57 | 22.06 | 15 | |||
| YD124510HSL | 12 | 10.8～13.2 | 0.12 | 1.44 | 6000 | 7.22 | 3.38 | 31.86 | 15 | |
| YD124510MSL | Sleeve | 0.10 | 1.20 | 5000 | 5.83 | 2.42 | 27.29 | 15 | ||
| YD124510LSL | 0.08 | 0.96 | 4000 | 4.50 | 1.57 | 22.06 | 15 | |||
| YD124510HBL | 0.12 | 1.44 | 6000 | 7.22 | 3.38 | 31.86 | 15 | |||
| YD124510MBL | Ball | 0.10 | 1.20 | 5000 | 5.83 | 2.42 | 27.29 | 15 | ||
| YD124510LBL | 0.08 | 0.96 | 4000 | 4.50 | 1.57 | 22.06 | 15 | |||
