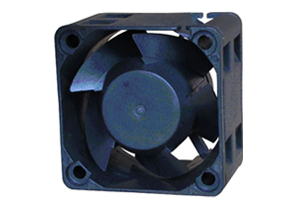

DC Axial-Flow Fan
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Dimensions Drawing（外观图） | ★Characteristic Curves（特性曲线） |
 |
 |
| ★Specifications（规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD124028HSL | 12 | 10.8～13.2 | 0.18 | 2.16 | 8000 | 10.27 | 8.37 | 38.76 | 35 | |
| YD124028MSL | Sleeve | 0.15 | 1.80 | 6500 | 8.45 | 5.70 | 32.57 | 35 | ||
| YD124028LSL | 0.12 | 1.44 | 5000 | 6.42 | 3.27 | 25.37 | 35 | |||
| YD124028HBL | 0.18 | 2.16 | 8000 | 10.27 | 8.37 | 38.76 | 35 | |||
| YD124028MBL | Ball | 0.15 | 1.80 | 6500 | 8.45 | 5.70 | 32.57 | 35 | ||
| YD124028LBL | 0.12 | 1.44 | 5000 | 6.42 | 3.27 | 25.37 | 35 | |||
| YD244028HSL | 24 | 21.6～26.4 | 0.13 | 4.32 | 8000 | 10.27 | 8.37 | 38.76 | 35 | |
| YD244028MSL | Sleeve | 0.08 | 1.92 | 6500 | 8.45 | 5.70 | 32.57 | 35 | ||
| YD244028LSL | 0.05 | 1.20 | 5000 | 6.42 | 3.27 | 25.37 | 35 | |||
| YD244028HBL | 0.13 | 4.32 | 8000 | 10.27 | 8.37 | 38.76 | 35 | |||
| YD244028MBL | Ball | 0.08 | 1.92 | 6500 | 8.45 | 5.70 | 32.57 | 35 | ||
| YD244028LBL | 0.05 | 1.20 | 5000 | 6.42 | 3.27 | 25.37 | 35 | |||
